Lightweight Aluminum Honeycomb Core

Brand Name : WDF

Model Number : WDF-AHC

Certification : ISO

Place of Origin : Guangdong China

MOQ : 200sqm

Price : 10-30usd

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4000 Square Meter/Square Meters per Day aluminum honeycomb core

Delivery Time : 7-20 working days

Packaging Details : standard Seaworhty pallet or upon customer request

Material : Aluminum Alloy

Foil Thickness : 0.036mm-0.08mm

Expanded Size : 600*600mm, 1220*2440mm, Customized Made

Shape : Rectangle, Triangle, Rhombus, Trapezoid

Aluminum Alloy Grade : A3003,A5052

Node Size : 1mm to 20mm, Customized Made

Application : Doors, flooring, ceilings, partitions, cleanroom panel

Chemical Finish : Paingting, Powder, Anodized, Electrophoreses

Contact Now

Aluminum Door Honeycomb Core For Laser Jet Cutting And Shielding Screen

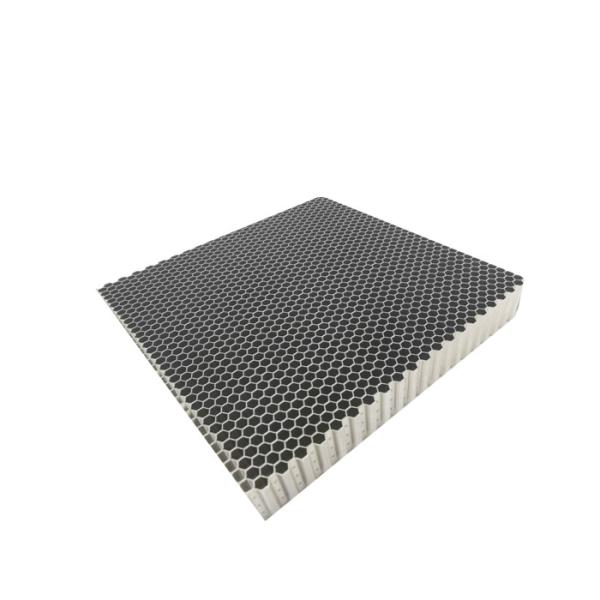

The aluminum honeycomb core is composed by multi-layer aluminum foil, honeycomb is formed after fully expanded. Our aluminum honeycomb core has sharp and clear hole surface, and it is suitable for adhering to high grade plate as well as other purposes. At present, two types of product we mainly produced are micro-aperture aluminum core and normal.

Aluminium honeycomb as panels’ core has several advantages:

lightweight
stiffness
fire resistance
compression, shear and corrosion resistance
flatness

Typical Mechanical Properties

CELL SIZE (INCHES) / DENSITY (LBS)	STABILIZED COMPRESSION	STRENGTH "L DIRECTION" (MPa)	MODULUS "L DIRECTION" (PSI)	STRENGTH "W DIRECTION" (MPa)	MODULUS "W DIRECTION" (PSI)
1/4 Inches \| Density 3.4	2.00 MPa \| 543 PSI	1.60	258	0.90	128
1/4 Inches \| Density 5.2	2.80 MPa \| 998 PSI	2.20	438	1.30	221
3/8 Inches \| Density 2.3	1.11 MPa \| 242 PSI	0.86	189	0.59	88
3/8 Inches \| Density 3.6	1.56 MPa \| 632 PSI	1.20	283	0.82	144
1/2 Inches \| Density 1.7	0.65 MPa \| 94 PSI	0.7	102	0.4	58
1/2 Inches \| Density 2.6	0.86 MPa \| 274 PSI	0.80	222	0.55	99
3/4 Inches \| Density 1.2	0.35 MPa \| 51 PSI	0.4	58	0.3	44
3/4 Inches \| Density 1.8	0.48 MPa \| 163 PSI	0.48	111	0.35	54
1 Inches \| Density 1.3	0.35 MPa \| 51 PSI	0.4	58	0.3	44

*Information contained above is typical only and should be verified for any specific applications

Aluminum Foil Material	A1100, A3003, A5052, A3104
Avaliable Foil Thickness	0.04-0.15 mm
Node	1-20 mm
Diameter/Cell Size	1.7-35 mm
Core Thickness/Cutting Height	3.5-200mm
Shape	rectangle, triangle, rhombus, trapezoid
Regular Surface Treatment	Powder Coating, Anodized, Electrophoreses, etc.
Applications	network for traffic guidance light, crystal lattice for electric heater, laser-beam cutter panel for testile machine, separator for illmination, guidance for water and gas purification, cooling agent carrier for air conditioner, refrigerator and air purification, shielding screen, heat insulation screen, etc.
Customerization(MTM)	Yes (color, surface texture, size, shape, pattern, etc.)

Supplied form:

Expanded or unexpanded.

Full blocks or cut slices.

Perforated or un perforated.

Corrosion treated or untreated.

Application

Architectural wall Cladding and decoration

Architectural Rainscreen Facades and canopies envelope.

Lightweight interior and exterior architectural panels.

Aerospace, Marine & Transport Flooring, ceilings, Walls & Partitions

Silk Screen Printing Tables, doors and cabinets

CNC Vacuum Bases

Lightweight Floors, Walls, partitions, canopies, Ceilings, roofs etc.

Special Purpose Panel Design

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. .
